XHinstruments XHX-24 ເຄື່ອງທົດສອບຄວາມອິດເມື່ອຍຂອງເສັ້ນດ້າຍ (0-500cN)

Measuring Range: 0-500cN

Frictional Angle: 0°-360°

Tension Range: 0-24cN

Range of friction coeffcient: 0＜u＜1

Testing Speed: 100m/min

Dimension: 400mmx390mmx320mm

Weight: 20Kgs

Power Supply: 110/220V, 50/60Hz, 300W

Product Description:

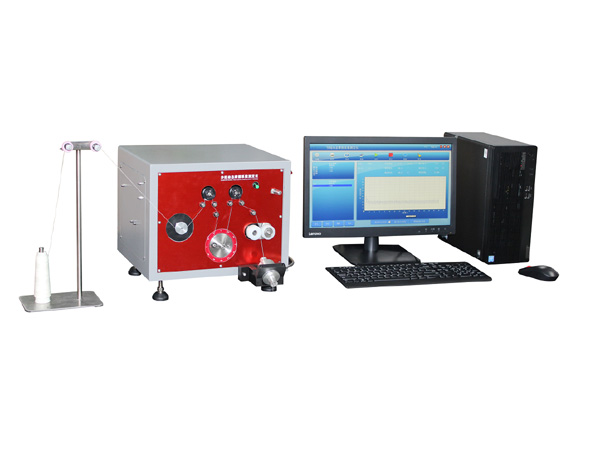

XHX-24 Yarn Friction Tester is used to measure the friction properties of yarns, suitable for chemical filament and other materials yarn. It is an indispensable testing instrument for evaluating the friction coefficient of filament and textile equipment.

Test Standards: ASTM D 3108

Product Features:

1. The shell of the whole machine is treated with plastic spraying process, which is beautiful and easy to clean

2. Special aluminum panel, imported meter head and stainless steel keys are sensitive to operation and not easy to damage

3. The movement of the instrument adopts dual-motor control to be reliable and stable

4. The movement of the instrument is equipped with imported precision bearings, which is durable

5. Computer control and automatic data processing
