XHinstruments XHX-17 ເຄື່ອງກວດຈັບເສັ້ນດ້າຍ

Length Range: 1000mm

Length Resolution: 1mm

Force Range: 0.1-500cN

Force Resolution: 0.1CN

Testing Speed: 1-1000mm/min

Dimension: 1460mm×300mm×350mm

Weight: 25Kgs

Power Supply: 110V/220V, 50/60Hz

Product Description:

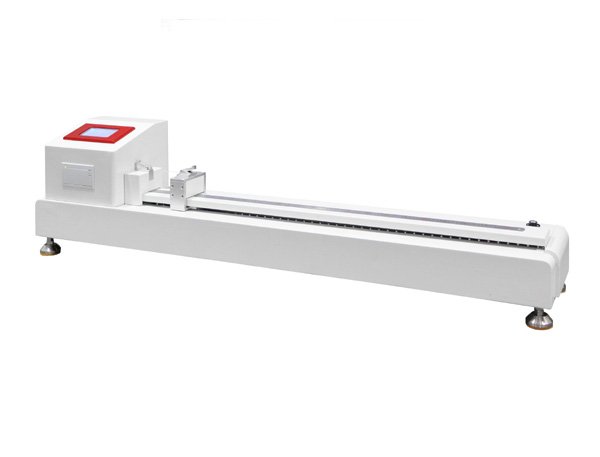

XHX-17 Yarn Crimp Tester is designed to measure yarn crimp or take-up in woven fabrics and stitch or course lengths in knitted fabrics. Detach the yarn from a piece of given-length fabric, unbending it under given force and measuring its length. To calculate the crimp in yarn affected by knitting or weaving, to determine actual yarn usage. LCD display, main frame is made of stainless steel and aluminum alloy.

Test Standards:  ISO7211, BS 2863, BS 2865 , BS 2866, ASTM D3883

Product Features:

Color touch screen operation.

Adopt microcomputer control and stepper motor transmission to ensure stesteady running.

Adopt high precision sensor to ensure accurate test results.

Equipped with thermal printer to printer statistic results.
