XHinstruments XHX-12 ເຄື່ອງທົດສອບຄວາມລຽບຂອງເສັ້ນດ້າຍ ແລະເສັ້ນຜົມ

Testing range: 4tex-12ktex

Yarn testing speed:

8 m／min,25 m／min,50 m／min,100 m／min

200 m／min, 400 m／min, 800 m／min

Testing time: freely set between 10s-20min

Coefficient of Variation:

(CV%) or Unevenness (U%) and CV (1) V-L curve

CV% or U% value testing range: 0.20%~99.99%

V-L curve cutting length 1cm~1000m

Deviation Rate (DR%) and DR curve reference length and threshold

20cm,+35%; 20cm,-30%; 1m,+5%; 1m,-5%

Faults value output faults value of twelve levels sensitivity at same time

thin places -30%, -40%, -50%, -60%

thick places +35%, +50%, +70%, +100%

neps +140%, +200%, +280%, +400%

Spectrogram spectrogram measurable wave-length range 1cm~2950m spectrum channels 170

Power Supply 220V, 50Hz, Single Phrase

Product Description:

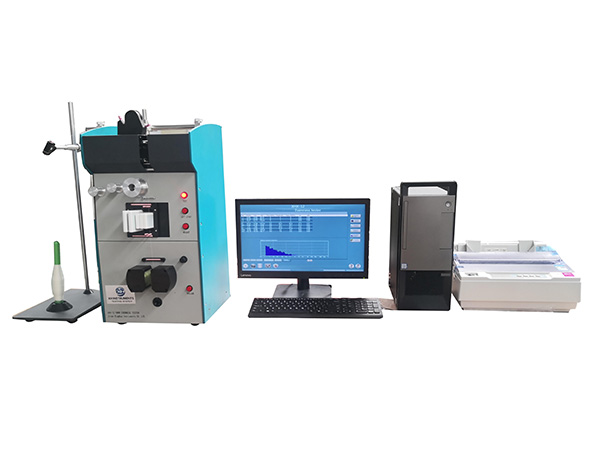

XHX-12 Yarn Evenness Tester is a kind of universal high-performance textile lab instrument. It is used for testing yarn unevenness and hairiness variety, which is suitable for cotton, wool, silk, flax, chemical short fiber spinning and blended yarn. It is very important to improve and guarantee yarn quality.

Test Standards: ASTM D1425/D1425M-09

Product Features

1. Measurement speed can reach up tp 800/min.

2. Easy operation: Based on windows operation system, setting and operation is very easy, the ordinary testing process can be finished with one key.

3. High Automation, add zero push yarn rod, real automatic zero function, add automatic alarm function for yarn broken.

4. It can test CV% value, U% value, H value ( hairiness function is optional), SH value (hairness function is optional), DR Value and twelve levels faults in real time.

5. It has various graphic indices, such as variation-length curve, unevenness curve, spectrogram, linear density-frequency distribution, etc, which are convenient to evaluate yarn quality.

6. The technology of data protection and restoration can effectively protect various data reports stored in computer and rapidly solve any breakdown caused by the software or hardware.

7. Test results are stored in a database, so the user can classify, analyze and rapidly retrieve them

8. Drive system: Adopt imported servo system to improve the reliability.
