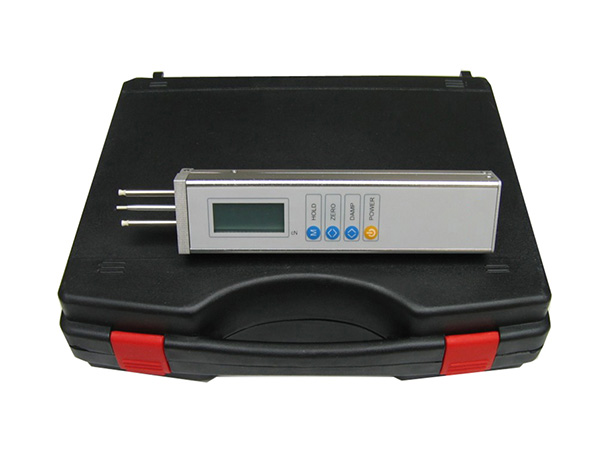

XHinstruments XHX-08 ເຄື່ອງວັດແທກຄວາມເຄັ່ງຕຶງເສັ້ນດ້າຍ

Range : Range :0-100CN (0-100g), 0-200CN (0-200g), 0-500CN

(0-500g), 0-1000CN (0-1000g) (select one)

Resolution : 0.1CN at range 100CN and 200CN, 1CN at range 500CN and 1000CN

Accuracy: ±1% full scale

Units: cN

Outrange: approx 10% full scale without accuracy guarantee

Overload protection: 200% of tension range

Measuring principle: Strain gauge bridge

Signal processing: Digital 10 bit ADC

Damping: Adjustable electronic damp; (10 steps)．moving averaging

Sampling rate: approx 1 kHz

Display update rate: approximate 2 times/sec

Display: 4-digit LCD,12.7 mm high

Temperature range: 10—45℃

Air humidity: 85% RH．Max

Auto power off: automatically after approx 3 min of non—use

Power supply: Two AA Battery (about 50 hours of continuous use)

Housing material: Aluminum profile with outer casing

Housing: 230 X 62 x 46 mm (D x W x H)

Weight net (gross): approximate 350 g (1020 g)

Product Description:

XHX-08 Electronic Yarn Tension Meters are used throughout the world in a wide variety of typical as well as special applications．A few samples are shown below:

● In the Knitting Industry: exact adjusting of yarn feeders of circular knitting machines.

● In the Man-Made Fiber Industries: For wire drawing or winding machines.

● In the Wire Industries: doubling twister.

● In Cotton Textile Industries: for winding machines.

● In the Optical Fiber Industries: winding machines.

● Ifor testing cooper wire
