XHinstruments XHX-07-B ເຄື່ອງທົດສອບຄວາມແຂງຂອງຊຸດເສັ້ນດ້າຍ (10-90H)

Parameters: Tested Result/Mean Value/Max.Value

Indenter: Ball 5mmΦ

Convertible Probe: The curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the plane end of the probe is suitable for the bobbin with a diameter greater than 400mm

Area Of Application: For closely wound bobbins of synthetic, finished fibers and filaments

Display Range: 0-100H (hardness graduation marks)

Testing Range: 10-90H (hardness graduation marks)

Resolution: 0.1H

Accuracy: ≤±1H

Battery Indicator: Low Battery Indicator

Auto Switch Off: √

Depth Of Indentation*: 0-2.5mm

Test Pressure**: Approx. 12.5N

Measuring Spring Force*: 0.55-8.065N

Scale Diameter: 51mm

Working Face Radius: 55mm (when using the curved end of the probe)

Working Face Flat: 45mmΦ (when using the plane end of the probe)

Operating: Temperature:0~40ºC Humidity:<80%RH

Power Supply: 2x1.5V AAA(UM-4)Battery

Dimensions: 177x65x45mm

Weight: Approx. 285g (Not including batteries)

Standard Accessories: Main Unit; Carrying Case; Operation Manual

Optional Accessories: USB Data Cable with Software; Bluetooth Data Adapter with Software

Product Description:

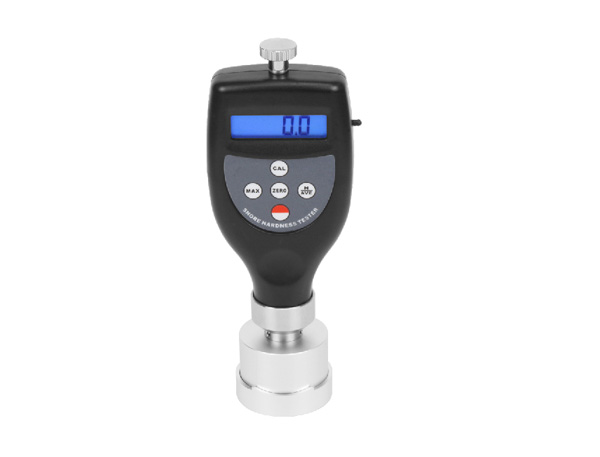

XHX-07 Yarn Hardness Tester is used to measure the winding density (hardness) of textile  bobbins, beams, spools, cones, dye packages etc.

Principle:

The principle used to measure textile hardness is based on measuring the resistance force of the penetration of a ball against the spool under a known spring load. The measuring principle is the same as for the Shore A hardness test.

Product Features

* Convertible probe, the curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the flat end of the probe is suitable for the bobbin with a diameter greater than 400mm.

* With average calculate function.

* Peak value deposit function.

* Under-voltage alarm function.

* Use USB data output to connect with PC.

* Provide Bluetooth data output choice.
