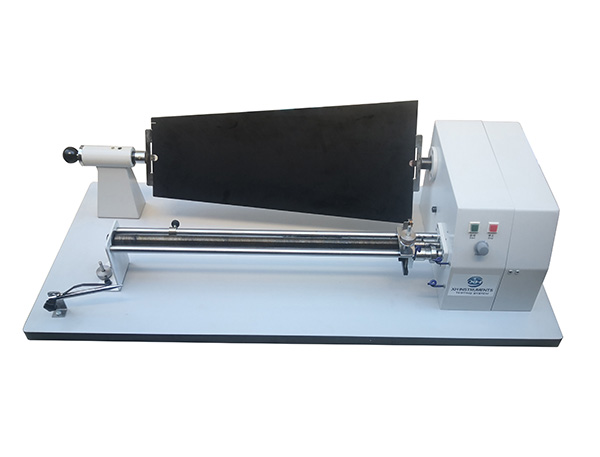

XHinstruments XHX-06A ເຄື່ອງກວດເສັ້ນດ້າຍ

Board size: 250×220mm

Reeling density: 7, 9, 11, 13, 15, 19 wraps/cm, 20/45mm 7steps

Rotate Speed: 0-350r/min

Power supply: AC220V, 50Hz, 50W

Dimension: 620×370×340mm

Weight: 20Kgs

Product Description:

Yarn Examining Machine applies to assess the evenness, hairiness, neps and other imperfections in a representative sample of various yarn wound at a pre-determined yarn density onto a quadrate/tapered black board.

Test Standards:  ASTM D2255

Product Features:

Driven by synchronous motor, and digital controlling circuit, ensure uniform pitch during a test.

Various pitch to satisfy comprehensive requirements of different yarn linear density.

Equipped with alternative pre-tension (ref. picture).

Auto-stop function.

Adjustable winding speed.
