XHinstruments XHX-05 ເຄື່ອງກວດບິດເສັ້ນດ້າຍເອເລັກໂຕຣນິກ

Test Method: F0: Direct counting method

F1: Untwist/re-twist method

F2: Double untwist-retwist method

F3: Three times of untwist/re-twist method

Testing length: 10-500 mm (settable)

Testing Speed: 100-2000r/min, stepless adjustable

Jog Speed: 100-2000r/min, stepless adjustable

Testing Range: 1-5000 Twist

Linear Density: 1-499.9 Tex

Dimension: 890mm×290mm×215mm

Weight: 15Kgs

Power supply: AC220V±10% 50Hz

Product Description

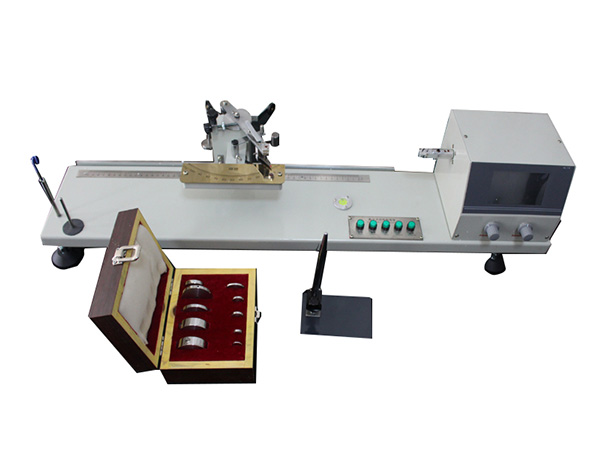

XHX-05 Electronic Yarn Twist Tester is used to determine yarn twist in single or plated yarns ,quadrant type with auto stop &reverse for convetional or untwist/re-twist methods . with S&Z indicator.

Test Standards:  ISO2061; Bs2085; ASTM D1422,1423; JIS L1095

Product Features: Controlled by microcomputer , displayed by touch screen , stepless variable speed . Adjustable yarn tension using set of weights, Adjustable yarn bobbin stand, Statistics function (mean value, min value, max value, CV%, standard variation). Has RS 232 interface to connect to PC.
