XHinstruments XHV-25B ເຄື່ອງກວດຄວາມແຂງຂອງເຈ້ຍ (20-6000mN)

Test range: 20-6000mN

Resolution: 1mN

Indication Error: ±1%

Testing speed: 200°/min and 300°/min

Rated Bend Angle: 0°-90° (random setting), stiffness bending: 15° Crease bending: 90°

Load arm length: Stiffness: 50mm, Crease: 10mm

Stiffness Specimen: 70mmx38mm

Crease Specimen: 38mmx 36mm

Dimension of machine: 5 kg

Dimension of sample cutter: 320×90×110mm

Power Supply: AC 220V±10%, 50HZ

Product Description:

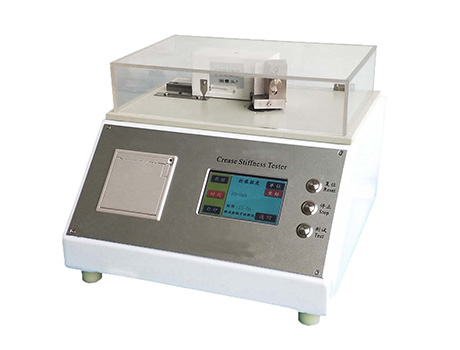

XHV-25B Crease Stiffness Tester is used to evaluate the crease stiffness and stiffness of cardboard.

With the Crease and Stiffness Tester, the Crease recovery is determined by the decrease in resistance offered by creased board after it is folded 90° at the crease measuring the recovery force after 15 seconds. Board Stiffness is determined by bending a 50mm length of board through a 15° angle.

Test Standards:  ISO5628, ISO 2493, TAPPIT556, BS6965

Product Features:

Adopt high precision load sensor, the error can be controlled within 1%.

Double Grips, Multi Function, can measure paper and cardboard bending stiffness, also can measure cardboard crease stiffness.

Plastic cover can protect measurement head from damage, can preset angle, stainless steel clamp, long time use.

LCD screen operation system, Aluminum control panel

Check or delete the testing records randomly

Thermal printer, fast and clear printing

Calculate, count and print the testing result automatically

Can be connected to PC and output results with our professional software
