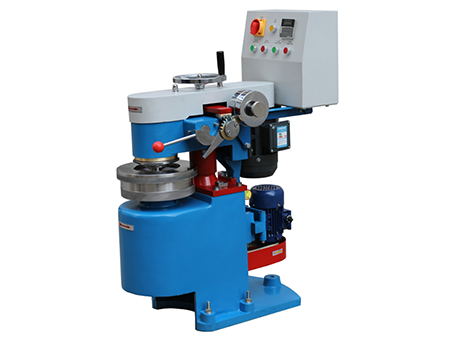

XHinstruments XHV-18 ເຄື່ອງຕັດແຍກເນື້ອເຍື່ອມາດຕະຖານແນວຕັ້ງ

Pulp: 24g oven dry stock, 1.2% concentration, 2000ml pulp

Volume: 3.46L

Pulp volume: 2000ml

Propeller: φ90mm, R gauge blade conform to the standards

Rotate speed: 3000r/min±5r/min

Standard of revolution: 50000r (can self set)

Dimension: W270×D520×H720mm

Weight: 50Kg

Product Description:

XHV-18 Vertical Standard Pulp Disintegrator, Another name is standard fiber dissociation or Standard fiber blender,Pulp fiber raw material at high speed in the water,Bundle fiber dissociation of single fiber.It is used to makeing sheethand,measure filter degree,The preparation for pulp screening.

Test Standards: JIS-P8220,TAPPI-T205,ISO-5263
