XHinstruments XHV-14B ເຄື່ອງທົດສອບຄວາມຫນາຂອງເຈ້ຍອັດຕະໂນມັດ (0-4mm)

Measurement range: 0-4mm

Resolution: 0.001mm

Accuracy: ±0.0025mm or ±0.5%

Parallel: ≤0.001mm

Touch Pressure: (100±10)kPa adjustable

Touch Area: (200±5)mm²

Dimension: 330mm×340mm×350mm

Weight: 25kgs

Power: 110V/220V, 50Hz/60Hz

Product Description:

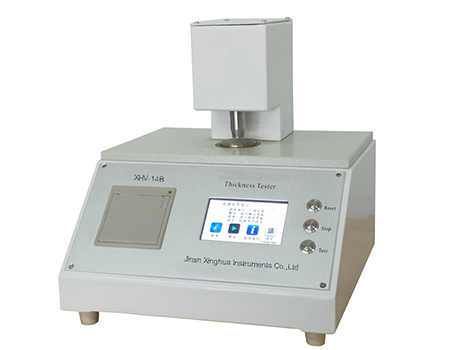

XHV-14B Automatic Paper Thickness tester is used to test the thickness of paper, cardboard. It's the essential equipment for the paper and package manufactory, research and inspection department .

Test Standards: ISO534, GB/T451.3, ISO3034, GB/T6547, QB/T1055

Product Features:

1.Adopt high precision load sensor, the accuracy of force can be controlled better than 1%, usually we control it within 0.5% out of factory.

2. Precision ball screw transmission, Aluminum-alloy control panel, reasonable design for upper and lower stainlesss steel plate.

3. Touchscreen operation system, automatic complete operation, has statistics function. Micro-printer, fast and clear printing. Can be connected to PC, save, output results and graphs with our professional software.

4.High performance stepless motor driven, USA chips control, ensure accurate transmission, fast and high efficient test.

5.Professional calibration procedure, user can calibrate the machine easily.
