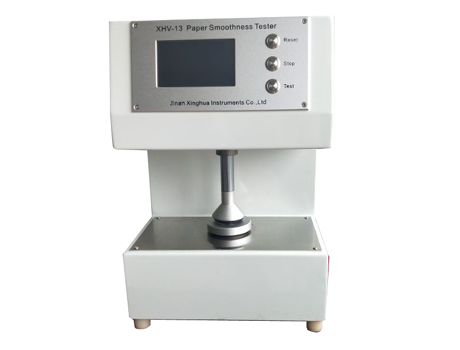

XHinstruments XHV-13 Bekk Smoothness Tester

Power supply: AC220V±10% 50HZ

Measuring scope: (1-9999)s, can be divided to (1-15)s, (15-300)s, (300-9999)s, manual operation and automatic operation

Time accuracy: ±1s within 1000s

Vacuum system volume:

The bigger volume: 380±1ml

The smaller volume: 38±1ml

Contact pressure: 100±2Kpa

Vacuum scope:

Ⅰ: 50.66-29.33 Kpa

Ⅱ: 50.66-48.00 Kpa

Ⅲ: 50.66-48.00 Kpa

Air volume (50.66kpa down to 48.00kpa):

Big vacuum volume: 10.00±0.20ml

Small vacuum volume: 1.00±0.05ml

Dimension: 300*370*420mm

Net weight: 37kg

Product Description:

XHV-13 Smoothness Tester is the latest generation of upgrades. After the product upgrade, the system's sealing, volumetric accuracy, measurement accuracy and ease of operation have been greatly improved and improved.

This instrument is the basic instrument for the smoothness test of paper and paperboard designed according to the working principle of the internationally popular Bekk smoothing instrument. Its performance parameters and technical indicators are in accordance with ISO5627 “Paper and board -- Determination of smoothness (Bekk method)”, GB456 "paper and paperboard smoothness measurement method (Bekk method)" and other standards. Smoothness Tester is the ideal testing equipment for paper, quality inspection, scientific research and other industries and departments.

Test Standards: ISO 5627

Product Features:

1. Adopt imported high precision sensor and oil-free vacuum pump, low noise, high precision.

2. Rapid measurement: Choose small volume to measure, the measuring time is only one-tenth of large volume. In this way can save much measuring time and realize the rapid measurement.

3. Adopt imported electromagnetic valve and stainless steel vacuum chamber, good sealing and advanced sealing technology, test results will be much more accurate and stable.

4. Touch Sceen operation, automatic proceed test,  Show the results of measurement and statistics. Friendly human-computer interface make cooperationsimple and convenient. All are reflected the humanity design thought.
