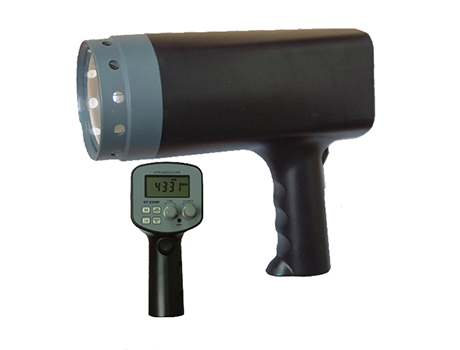

XHinstruments XHV-11 stroboscope

Display LCD

Range 50-2,000 FPM(Fit Print and Textile)

Resolution 0.1 FPM(50~999.9 FPM) 1 FPM(Over 1000 FPM)

Accuracy ±(0.05%n+1d)

Sampling Time 0.3 Seconds

Internal / External Triggering Conversion

External Trigger Level 3-24 V

H/L Range Flashing Light is much Brighter at Low Range than at High Range

Flash Tube Life 100 Millian Times

Operating Conditions Temperature:0-40C

Humidity:<85%RH

Power Supply AC 220V(Optional AV 110V)

Power Consumption About 50W

Dimensions 215x85x180 mm

Weight Abou 1000

Product Description:

The Stroboscope is capable to provide image of single, two or multiple stillness for the vibration object, rapidly rolling object, can also use to observe the movement tracks.

Product Features:

* Digital display gives exact reading with no guessing or errors; Wide measuring range and high resolution.

* Automatic stop flashing to save electricity and improve flash tube lifetime.

* Internal / external triggering fast conversion; x2 and ÷2 button for fast adjustment.

* Use photoelectric signal while external triggering, achieve automatic tracking function of the pattern.

* Use microcomputer technology, emerging technologies, anti-jamming technique and other advanced technology, it can measure the rotative velocity without contacting the object.
