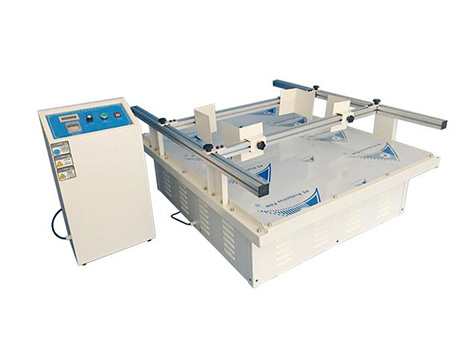

XHinstruments XHV-10 Package Shaker (100Kgs)

Max Test Load: 100Kgs

Test Frequency: 100-300 rpm

Vibration Mode: Gyration

Test Displacement: 25.4mm

Working Table Size: 1000×1200mm (Adjustable)

Testing Time: 0-99H99M

Power Supply: 220V, 50Hz

Product Description:

Vibration resistance test of containers during transport and handling package shaker designed for the laboratory simulation of typical hazards present in distribution environments according to standard ASTM D-999/A1.

Test Standards: ASTM D-999/A1

Product Features:

Test sample fixture adopt guide rail type, with locking device, the size can be adjusted freely.

Adjustable speed DC motor can provide strong momentum, good load capacity.

The synchronization squelch belt drive, heavy-duty channel steel base with vibration-reduce rubber can let machine run smoothly, low noise.

Intelligent time relay set the run time.
