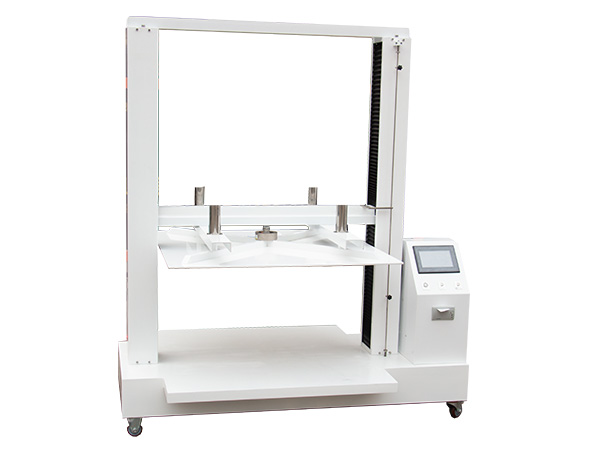

XHinstruments XHV-08 ເຄື່ອງທົດສອບການບີບອັດກ່ອງ (50KN)

Capacity: 5000N, 10KN, 20KN, 50KN

Accuracy: ±1% FS of Indication Value

Force Display Resolution: 0.01N

Deformation Resolution: 0.1mm

Deformation Error: <1mm

Transverse displacement of plates relative to each other at test : <0.05mm

Return Speed: 1-40mm/min(arbitrary setting)

Test Speed: 1-400mm/min(arbitrary setting)

Speed Accuracy: <1% of Indication Value

Speed for compression test: 10mm/min (Test Requirement)

Dimensions of the working part of the plate: 600mmx600mm, 800mmx800mm, 1000mmx1000mm

Movement of the movable plate (upper): 600m, 800mm, 1000mm

Units: Kgf, Ibf, N, KN

Maximum number of tests : 10 (one series)

Results: One-time values, Mean value, Max Value, Min Value, Mean Square Value

Printer: Fast Speed Thermal Printer for Printing Results

Protector: Overload Protection, Displacement Limit Protection

Power Supply: 220V, 50Hz/60Hz, single phrase

Product Description:

XHV-08 Box Compression Tester is  used to test compressive strength of cartons, containers and other packaging structure, adopts dynamic holding pressure technology, simulates stacking the test of pile, in order to know the compressive strength and impact-resistant capacity of product packaging during transportation and stacking , This machine adopts Load Cell Sensor, through computer analyse then it will directly displayed the resistance force on the screen through the computer. The test results can used as the reference for packaging design.

Test Standards: ISO 12048, ASTM D642, ASTM D4169, TAPPI T804,JIS Z0212, GB/T 16491, GB/T 4857.4, QB/T 1048-2004

Product Features:

1. Big 7 inch touch screen operation, fast data collection, test automatically, intelligent judgment, display load-displacement graph (N/mm).

2. Three test methods:Compression test, stacking test, press standard test.

4. Open structure, double precision ball screw drive system, double column, reduction gears drive reduction, good parallelism, good stability, strong rigidity, long service life.

5. High precision stepper motor controls with high precise, low noise.

6. Accurate position and fast response speed save test time.

7. Ultimate travel protection, overload protection, bugs prompt and fault prompts intelligent configuration to ensure safe operation, micro-printer can print test data easily.

8. Automatic return to test position.

9. Select test software+ PC, can use both touch screen and PC to control the test, display real time graphs, output detail test report.

10. Two test methods:compression test, stacking test
