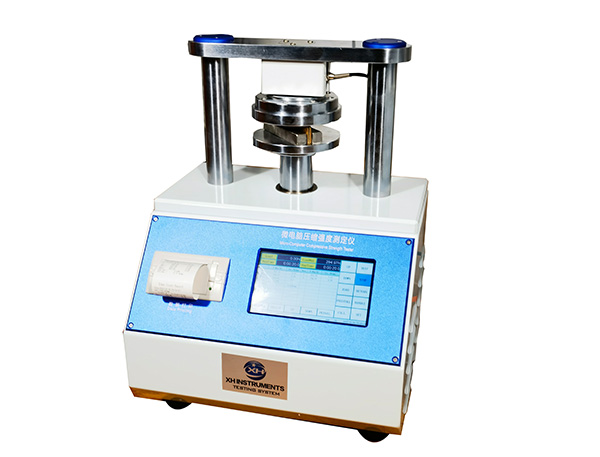

XHinstruments XHV-03 Crush Tester (0-3000N)

Force Measurement range: 0-3000N

Resolution: 1N

Test Speed: (12.5±2.5) mm/min （ECT, RCT, FCT, CMT, CCT, PAT)

Parallelism between upper and lower plate: <0.05mm

Dimension: 350×370×530mm

Weight: 45Kg

Product Description:

XHV-03 Crush Tester is applying to do the RCT, ECT, PAT, FCT, CMT, CCT. It is the ideal testing equipment for papermaking, packaging, quality inspection department and so on.

Test Standards: ISO13820, ISO3037, ISO7263, ISO12192 , ISO3035, ISO 13821.................etc.

Product Features:

1. Adopt high precision load sensor, the accuracy of force can be controlled better than 1%, usually we control it within 0.5% out of factory.

2. Precision ball screw transmission, Aluminum-alloy control panel, reasonable design for upper and lower stainless steel plate.

3.Color Touch screen operation system, automatic complete operation, has statistics function.

4. Micro-printer, fast and clear printing

5. Professional calibration procedure, user can calibrate the machine easily.

7. High performance  motor driven, USA chips control, ensure accurate transmission, fast and high efficient test.

8. The crush tester can add thickness test according to customer special requirement.

9. Multi units can be selected.
