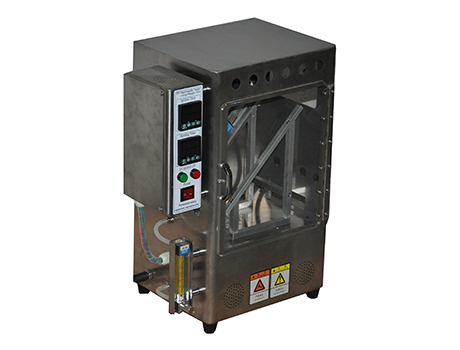

XHinstruments XHS-19 SPI Vinyl Plastic Film ເຄື່ອງທົດສອບການຕິດໄຟ

Test chamber: 30cmX25cmX37cm,There are five 20mm air holes on each side of left and right sides

Sample holder: 45°

Sample fixture: Length 11 ", width 4 15/16", slot width 1 1/2 ", 1 "end bending length, width of 3 7/8", bending Angle 45 °

Mark line spacing: 6”

Distance of burner from sample surface: 9/16”

Flame length: 1/2”

fuel gas: Butane

Sample size: 3”x9”

Volume(WxDxH): 46x29x52cm

Weight(about): 20Kg

Power source : AC 220V 50Hz 3A

Product Description:

Vinyl Plastic Film Flammability Tester is suitable for testing the flame retardant property of polyethylene plastic film materials. The testing scope is mainly non-rigid and unsupported polyethylene plastic film materials, including transparent, translucent and opaque materials.Includes flat, convex, cast or surface-treated materials.

Principle:

Under prescribed conditions, sample with fixture clamping, the Angle of 45 ° inclined to put, specimen ignition, record of sample spacing on 45 degrees of bevel to 6 'burning time, burning rate to calculate sample.

Test Standards: （CPSC）16 CFR Part 1611
