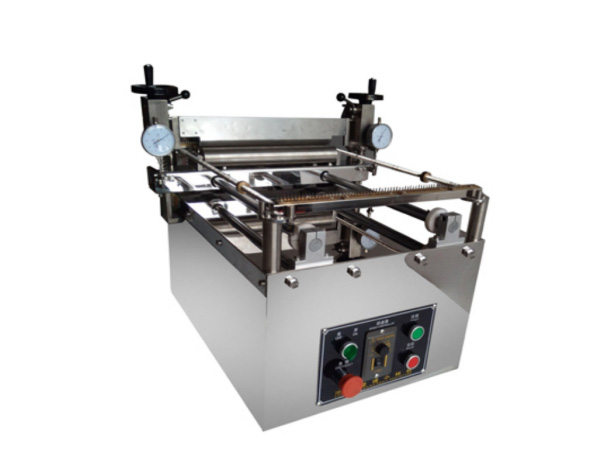

XHinstruments XHS-18T ເຄື່ອງເຄືອບ Textile Lab

Main Configuration: Mobile Needle Plate Frame, Coating Roller, Scraper

Control: Electronic

Material: Whole machine use SUS 304 Stainless Steel

Coating Size: Max Coating Size: 500mmx300mm, Effective Coating Size: 370mmx300mm

Mobile Needle Plate Frame: Can be with fabric into lab stenter

Coating Roller: Diameter 40mmx300mm

Scraper: Stainless steel material, angle 30 degree before coating

Coating thickness: 0-5mm

Resolution: 0.01mm

Coating Parameter: Modify coating parameter via modify scraper’s vertical position, roller position.

Transmission: Ball Screw, imported guide rail

Speed: 0-1 meter/min adjustable

Power Supply: 220V, 50Hz

Dimension: 540mmx650mmx540mm

Weight: 66Kgs

Product Description: The lab coating machine is used for textile and other materials.
