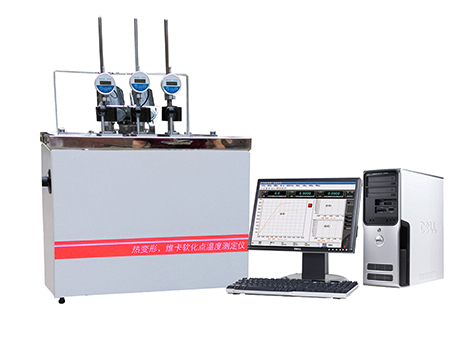

XHinstruments XHS-15A Vicat Softening ອຸນຫະພູມແລະເຄື່ອງ HDT

Temperature Control Range: Room Temperature-300C

Max Temperature Error: ±0.5C

Heating Rate: (120±10)C /h [(12.0±1.0)C/6min]; (50±5)/C /h [(5.0±0.5)C/6min]

Test Station: 3

Deformation Measurement Method: High Precision Dial Gauge

Deformation Measurement Range: 0-10mm

Max Deformation Error: ±0.005mm

Resolution of Deformation: 0.001mm

Sample Span: 64mm, 100mm

Thermal Expansion Coefficient of Sample Frame: <0.005/100C (important)

Heating Medium: Methyl silicon oil

Cooling Method: Natural Cooling or water cooling below 150C, Natural Cooling Above 150C

Power Supply: 220V, 50Hz, Single Phrase

Product Description:

The XHS-15A thermal deformation, Vicat softening point temperature tester is mainly used for the determination of temperature of thermal deformation and Vicat softening point to nonmetallic materials(such as plastic, rubber, nylon, electric insulating materials, etc.). It is the ideal testing tool for chemical industry enterprises, research institutes, colleges and so on. It adopt computer controlled.

Test Standards: GB/T 1633, GB/T 8802, GB/T 1634, ISO 2507, ISO 75, ISO 306, ASTMD 1525, ASTMD 648

Product Features:

1. Computer collects temperature fluctuation and controls overall process, real time displays temperature, deformation curve and test time, CRT color curve display, prints the test result automatically.

2. The software adopts menu operation, which makes operation of users more practical.

3. Digital process, computer display real-time temperature, deformation and test time at the same time, which makes the system more reliable.

4. Report forms can be automatically compiled and meet with the requirements of customer.

5. Adopt dial gauge to measure deformation, more accurate than adopting displacement sensor.

6. Multi safety protection, mechanical over temperature protection, software over temperature protection, auto stop after test complete, user password protection.

7. Adopt advance PID technology and photo electric technology to control temperature raise, ensure error of heating speed is less than 0.5C
