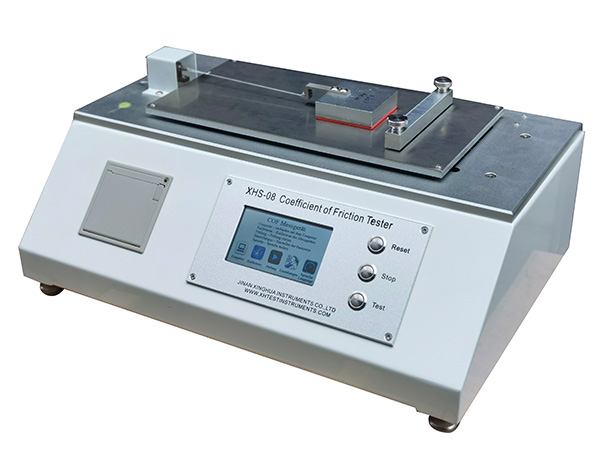

XHinstruments XHS-08 ຄ່າສໍາປະສິດຂອງ Friction Tester (0-5N)

Measurement range: 0-5N

Resolution: 0.001N

Dimension of slider: 63 x 63mm，wrapped with sponge rubber

Weight of slider: 200±2g

Dimension of working plate: 170 x336mm

Testing accuracy: ±0.5%

Speed of slider: 0-150mm/min (adjustable)

Travel of slider: 0-150mm (adjustable)

Dimension: 500 x 335 x 220mm

Weight: 25Kgs

Power Supply: 220V, 50Hz

Product Description:

XHS-08 Coefficient of Friction Tester is mainly applying in testing the static and dynamic friction coefficient of plastic film and sheet. It is controlled by computer, measures and displays automatically the friction coefficient with reliable performance, high accuracy and multi function.

Test Standards:  GB10006, ISO8295, ASTMD1894, TAPPIT816

Product Features:

Static and Kinetic coefficients of friction can be tested simultaneously.

Micro-computer control, fully digital automatic system, touch screen displays friction force during the test and display static and dynamic friction coefficient as test results.

Aluminum alloy operation panel, adopt high precision load cell.

Special drive system (use stepper motor) design to make test smoothly, test is more accurate.

Have statistical analysis function, also can be connect to PC to display testing graphs.

Fast speed mini-printer to print out the test results.
