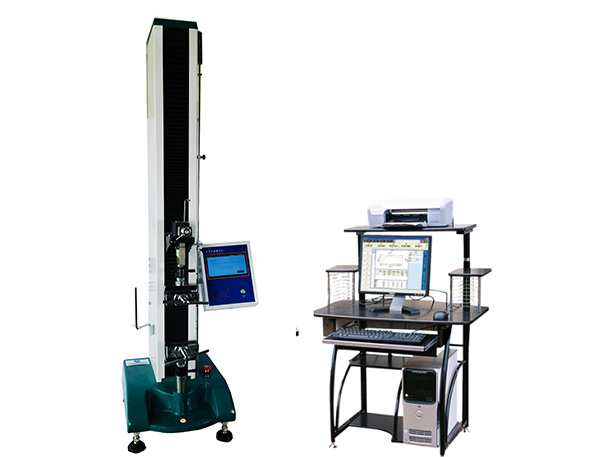

XHinstruments XHL-02T ເຄື່ອງທົດສອບຄວາມທົນທານຂອງແຜ່ນແພ

Load Cell: 100N, 200N, 500N, 1000N, 2000N, 3000N, 5000N, 10000N

Resolution of load: 0.1N

Load measurement accuracy: +/-0.5% of the indicated load value

Jog speed: 0.1mm/min-1000mm/min (adjustable)

Return speed: 0.1mm/min-1000mm/min (adjustable)

Speed accuracy: <+/-1%

Elongation: When gauge length is 100mm, max elongation is 700mm

Gauge Length: 25-500mm (adjustable)

Displacement resolution and acccuracy: 0.01mm

Pretension force: Adjustable

Machine dimension: 380×480×1450mm

Machine weight: 120kgs

Product Description:

XHL-02T Textile Tensile Strength Tester is a new generation of tester with innovative design, convenient using, excellent performance and pleasing appearance, this tester is special deigned in testing textile and Yarn.

Test Function:

Constant Speed Tensile Test

Peeling Test

Tearing Test

Seam Slippage Test

Bursting Test

Definite Elongation Test Load Test

Definite Load Test Elongation Test

Elastic Recovery Test

Yarn Strength Test

Lea Yarn Strength Test

Test Standards

ISO13934.1, ISO13934.2, ISO13937.2, ISO9073.4, ISO13936.1, ISO13936.2, ISO13935.1, ISO13935.2, ISO 2062, ASTM D2256 ASTM D5034, ASTM D5035, ASTM D2261,  ASTM D5587, ASTM D3936, ASTM D4964, ISO 9073.3, ISO 9073.5, ASTM D2061.................ETC.

Product Features

I. Working pattern: CRE principle, controlled by large LCD, equipped with an online interface, can be also controlled by computer with professional textile and yarn testing software., real time display graphs, breaking load, elongation, with PC powerful analysis system, also can give yield load, yield elongation, CV% of load...etc.

II. Adopt Imported sensor from American Tedea, AC servo drive, ball screw, to do a wide range speed setting, suitable for all kinds of material mechanical performance testing.

III. Dual control, LCD panel control and computer control.

IV. According to the customer need to provide a variety of standard test functions, can also be customized according to customer requirements, results can be output to be word, picture, excel format, With different clamps can perform different test perfectly.

V. All testing results and graphs can be statistics and output into Excel, Word, and be printed accordingly.

VI. With the protective function of overload, over current, over voltage, displacement upper and lower limitation, also with emergency stop.

VII. Multi Unit is selectable: CN, N, Lb, g, Kg, mm, Inch
