XHinstruments XHL-02C ເຄື່ອງທົດສອບຄວາມເຂັ້ມແຂງເສັ້ນດ້າຍດຽວ (6000CN)

Max Measurement Force: 6000CN

Linear Deviation: 0.0005

Load Cell Accuracy Class: 0.0005

Gauge Length: 250mm±1mm,500mm±1mm

Pretension: 1cN-100cN

Elongation: when at 250mm gauge length, max elongation is 220%; when at 500mm gauge length, max elongation is 60%

Accuracy: Within ±0.5% of applied force

Tensile Speed: 20mm/min-1500mm/min

Tex: 1-999.9 random setting

Pretension: 1cN-100cN

Power: AC220V 50Hz

Dimension: 320mm×360mm×1160mm

Weight: 45kg

Product Description:

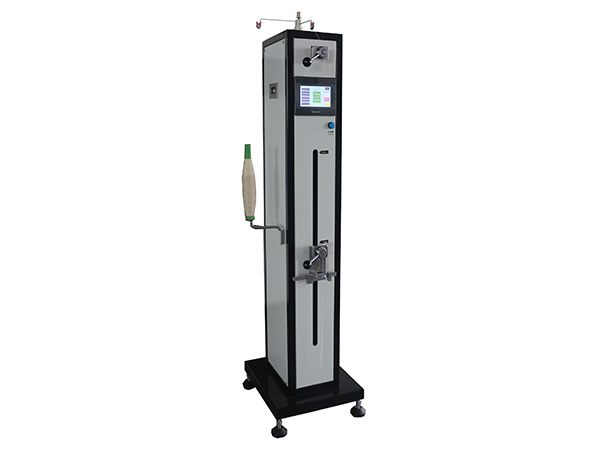

XHL-02C Single Yarn Strength Tester  is used to determine the breaking load and elongation of single yarns, core-spun yarn, polyester filament.. etc.

Test Standards

 GB/T 391, GB/T 14344, ISO 2062, ATSM D2256, BS 1932, DIN 53842.1, DIN 53835.2...etc.

Product Features

1. Working pattern: CRE principle, controlled by color touch screen.

2. Touch screen can record, browse detail results and print results by printer

3. Fully programmable to give breaking load, elongation, elongation rate, breaking time, CV%, AV.

4. Two methods: constant break time and constant speed test method.

5.  With memory function when power interrupt, and up to 100 tests on each sample.

6. The machine adopts contactless relay, stable performance, reliable

7. Gauge length and tension speed pre-settable

8. Able to set pretension force
