XHinstruments XHF-RII Steamer ຫ້ອງທົດລອງ

Test cloth size：300×400mm , effective size 300×350mm

Stereo drying, baking: Hot air circulation, digital temperature automatic control, operating temperature 20 ℃ ~ 250 ℃, temperature control accuracy of ± 2%.

Steaming: external steam for steaming

Saturated steam baking: steam processing, steam heating temperature range of 102℃±2℃

High temperature steam processing: electric and steam in combination, the temperature range of 100℃-250℃

When the temperature control: 1 - 99M can be preset. Finished automatically exit, and the end of the bell

Electric power: 6KW

Fan: stainless steel wind wheel, fan motor power: 180W

Needle plate: two-way stretch needle plate cloth.

Power Supply: 380V, 50Hz, 3 Phase

The fan above the device is the exhaust steam outlet and the cooling heat exhaust port

Dimension: 1540mmx700mmx1050mm

Weight: 180Kgs

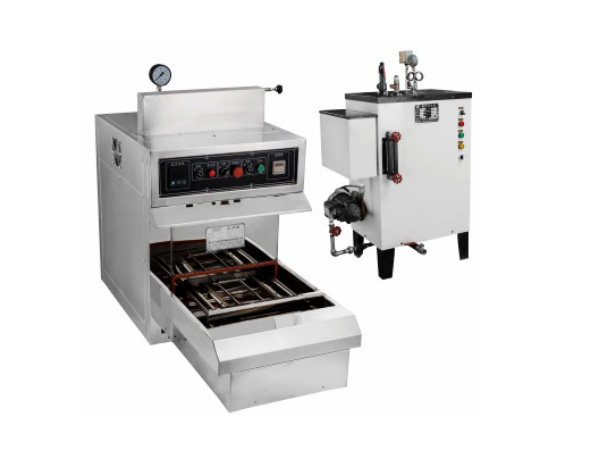

Product Description

Laboratory Steamer is apply to laboratory simulation workshops dyeing process, steam braise solid-color, heat resin curing test was conducted, auxiliaries and other prescription pharmaceutical and industrial conditions, the machine can be used as solid-color and the dryer of printing.

Product Features

With drying, setting, baking, hot-melt fixing (temperature 20 C - 250 C) and other functions, as well as steam function

Feeding and exit drive system, hot air circulation heating and its control system, needle plate frame and frame, steam heating and other components.

Process:

Preparation (needle plate) → automatic feeding → automatic timing → automatic return material and end call.

Configuration

Material: Made of high quality stainless steel, with a comprehensive insulation design.

Feeding and exit drive system, special high temperature resistant motor, precise chronograph for flexible selection of various timing ranges. Accurate temperature control and time control help to improve the success rate of the sample.
