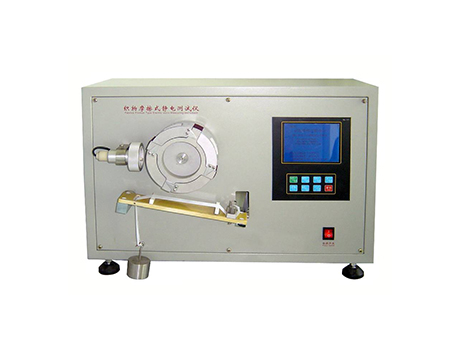

XHinstruments XHF-ET-03 ເຄື່ອງທົດສອບໄຟຟ້າສະຖິດແບບ Friction Friction-Type (0 -10kV)

Electrostatic voltage test range: 0 -10kV, Accuracy: ≤ +/- 1%

Rotary Drum: outside diameter 150mm, the width: 60mm

Drum Rotation Speed: 400 rmp (Friction speed: 190+/-10m/min)

Tension Load: 4.9N (500g)

Timing: 0-9999.9s, error +/-0.1s (adjustable)

Dimension: 650mm×380mm×470mm

Weight: 50kgs

Power Supply: 110V/220V, 50Hz/60Hz

Product Description:

Fabric Friction-Type Electrostatic Tester: A fabric specimen is mounted on a rotary drum and mechanically rubbed against a stationary rubbing cloth as the drum rotates. The electrostatic potential caused by the friction between the specimen and the rubbing cloth is measured by a detector electrode during the rotation cycle.

Test Standards: JIS L1094, ISO 18080-2

Product Features

Equipped with high precision electrode, can determine the voltage quickly and accurately.

Big LCD display, peak voltage and half life value will be automatically display and record.

Two test methods: fixed pressure test method and fiexed time test method.

Auto off friction, auto off motor.
