XHinstruments XHF-ET-01 ເຄື່ອງທົດສອບໄຟຟ້າສະຕິກ

Voltage range: 0-10KV (Continuous adjustable)

Disc speed: 1500r/min

Specimen size: 45×45mm

Electrostatic pressure decay time range: 1-9999.9s digital set

Electrostatic pressure discharge time range: 1-99s digital set

Specimen pre-rotation time range: 1-99s digital set

Distance between discharge need and specimen: 15mm can be calibrated

Dimension: 700×480×450mm

Weight: 50kgs

Power Supply: 110V/220V, 50Hz/60Hz

Product Description:

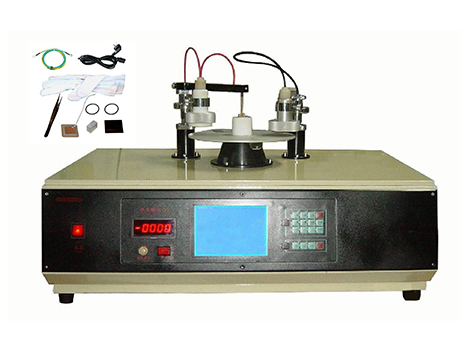

XHF-ET-01 Electrostatic Tester is used for testing the electrostatic performance of various fiber, yarns, fabrics, carpets, decorative materials and other platy manufactures after corona charged.

Test Standards: FZ/T01042, GB/T 12703

Product Features:

Adopt high technology, high precision measurement, LCD display and operation.

It have fully automatic operation method and semi-automatic operation method.

It have constant pressure test method and regular time test method.
