XHinstruments XHF-96 ສາຍແອວ Flexing Tester

Belt Dimension: Length: 1930±50mm, Width: 140±5mm

Speed: 90±8 cycles/min

Big Wheel Diameter: 225±5mm

Small Wheel Diameter: 60±0.5mm, 90±0.5mm, 120±0.5mm

Capacity: Max 6 sole

Counter: Touch Screen, 0-999,999

Dimension(W×D×H): 1450×600×600mm

Weight: 170kg

Power Supply: AC220V±10%, 50Hz/60Hz

Product Description:

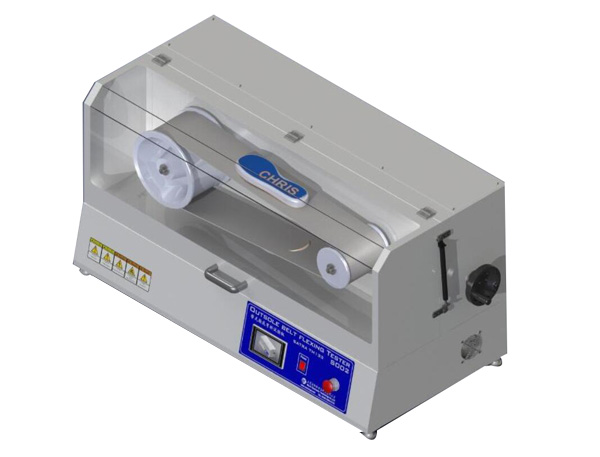

The Belt Flexing Tester proves one of the best indications of cracking of shoe sole due to flexing in wear. The sole forepart is attached to an endless belt which passes around two pulleys, the large one provides the rotation whilst the same one determines the severity of the flexing action. It is supplied with three small pulleys of diameters to increase or decrease the amount of flexing.

Test Standards: SATRA TM133, ISO 16177
