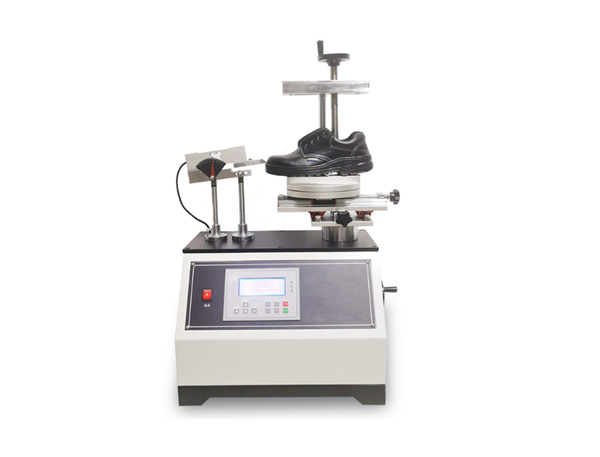

XHinstruments XHF-95 ເຄື່ອງທົດສອບຄວາມແຂງແຮງຂອງການປອກເປືອກເກີບ

Max Peeling Strength: 1000N

Peeling cutter`s width: 20±0.2mm and 10±0.1mm

Peeling cutter`s moving down speed: 20±2mm/min, up and down speed can be adjustable

The distance between the locating road and pulling road: 50-70mm adjustable

Dial Gauge: 0-10mm, 0.001mm

Elevating range: 40mm

Dimension: 560×320×750 mm

Weight: 45Kgs

Power Supply: AC 220V±10%, 50Hz/60Hz

Product Description:

Shoes Peeling Strength Tester price is used to determine the peeling strength between the sole and upper of a shoe.by peeling blade,peel the upper of the shoe from its sole to get the peeling force,then based on the blade's width to calculate its peeling strength.

Test Standards: SATRA TM 404, ISO 20344

Product Features:

LED-SLD806 integrated display control box, menu operation mode

Mechanical parts are made of non-corrosive structural aluminum and stainless steel materials

Clamp distance is adjustable, 360 degree for different size shoes.

Alloy steel sensor, high precision, stable and durable
