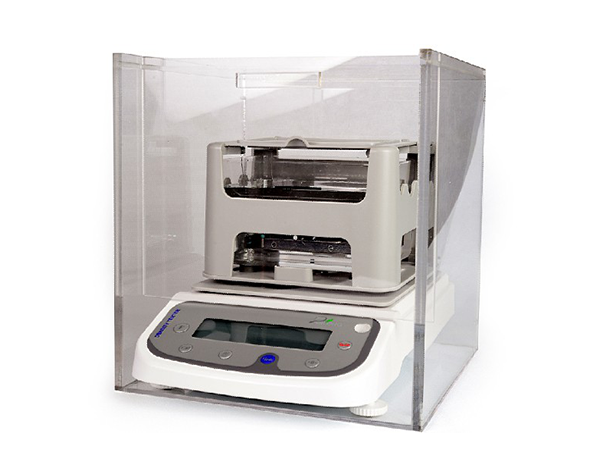

XHinstruments XHF-94 ເຄື່ອງວັດແທກຄວາມຫນາແຫນ້ນ

Weight range: 0.005-600g

Specific gravity: 0.001 g/cm3

Measurement time: about 10 seconds

Measurement value: Weight, Volume, Density

Setting: temperature compensation setting, solution compensation setting

Dimension: 270mmx200mmx265mm, Weight, 6.5kg

integrated molding sink size: 165mmx115mmx85mm

Product Description:

No manual calculation is needed to measure the specific gravity of the bulk products

Application: rubber, wire and cable, aluminum products, PVC plastic particles, powder metallurgy, minerals and rocks, EVA foaming materials, glass industry, metal products, precision ceramics, refractory material, magnetic material, alloy materials, machinery parts, recovery of metals, minerals and rocks, cement manufacturing, jewelry industry new materials research laboratory.

Principle: the Archimedes principle of buoyancy method, accurate, direct measuring values.

The machine adopts a injection molding measuring frame, integrated injection molding transparent sink, easy assembly, wear-resistant, anti-corrosion, can be clearly observed in the medium of the sample.

Test Standards: ASTM D297-93-16 , ASTM D471,ASTM D792 ASTM D1056,ASTM D3574,ASTMD792-00-16 ISO 1817,ISO 2781,ISO 1183-1, ISO 1183-2 etc

Product Features:

- gold plated ceramic capacitor sensor;

- with the density of the test device, can achieve the density of liquid, solid testing;

- density direct reading, reducing calculation cumbersome;

- standard RS232 data output feature, easy to connect PC and printer. ;

- automatic zero tracking, buzzer alarm, overload alarm function

- the quality of tested compounds in the air: more than 0.25g;

- the buoyancy in the air of the tested air: < -0.125;

- blue backlight LCD;
