XHinstruments XHF-93A ເຄື່ອງທົດສອບຄວາມຕ້ານທານຂອງແຜ່ນໃບ

Load on blade: 5+/-0.05N

max.cutting speed: 8+/-2cm/s (adjustable)

Horizental moveing distance: 50mm

Blade Dimension: Diameter: 45+/-0.5mm, Thickness: 0.3+/-0.03mm

Blade Angle: 30 to 35º;

Blade Hardness: 700-720V

Counter: 1-99999,Automatic Stop

Specimen holders: 2 Pcs

Dimension: 550×400×250mm

Weight: 40Kgs

Product Description:

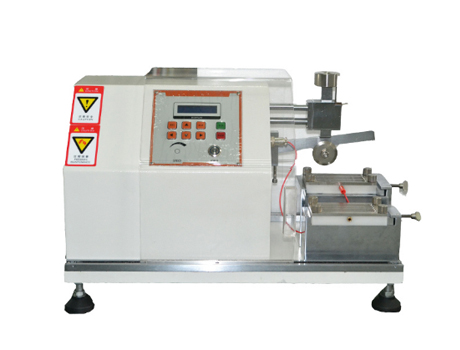

Blade Cut Resistance Tester  is used to determine the protective capability the safety glove against cutting.

Adriving rotation round blade under a specified load cuts the glove held by the fixture of tester to and fro. After test, compare it with its original statuses toget the result.

Test Standards: ISO 20344, EN388-2016-6.2
