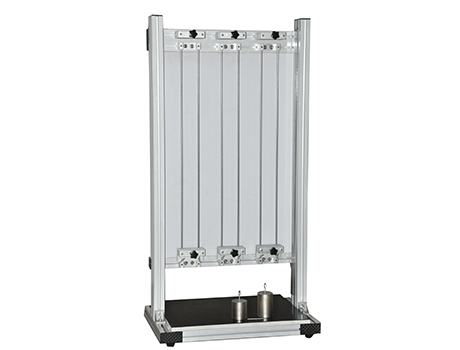

XHinstruments XHF-57B Fabric Stretch and Recovery Tester

Specimen dimension: 65mmx560mm

Test Statation: 3

Clamp Width: 70mm

Load: 3LB/4LB

Distance Between upper clamp and lower clamp: 40-790mm

Moving distance of lower clamp: 750mm

Dimension: 60x40x114cm

Weight: 30Kgs

Product Description: Fabric Stretch and Recovery Tester is developed for testing the stretch, growth and recovery performance of elastic fabric by static test at a specified tension or specified extension, where universal tensile testers are not applicable due to time requirement.

Test Standards: ASTM 3107, ASTM D2594
