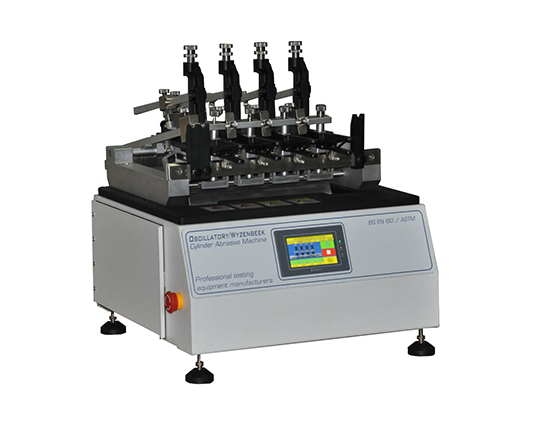

XHinstruments XHF-52 Oscillatory ແລະ Wyzenbeek Abrasion Tester

Test Stations: 4

Rubbing Head: Rubber pressure head, 50x50mm

Testing Speed: 90+/-1 r/min

Test Stroke: Cambered Length: 76+/-2mm

Specimen Tension Force: 4LB (17.8N)( 1-6 LB Adjustable) , Division: 0.5LB

Sample Load: 3LB(13.4N)(2-4LB Adjustable), Division: 0.5LB

Specimen Dimension: 73mmx245mm

Number of Specimen: 12, warp wise: 6, weft wise: 6

Tension adjust weights weight: 340g

Load regulation weights weight: 150g

Vacuum Cleaner: ≤4cfm

Dimension: 500x700x550mm

Weight: Approx 60KG

Power Supply: AC 110V/220V 50/60Hz

Wyzenbeek Abrasion Tester is to determine abrasion resistance of fabrics when rubbed against a standard abradant or a wire mesh screen with a backward and forward motion over a curved surface. Of specific interest to automotive and furniture industry fabric manufacturers working to US standards. Motor driven with 4 abrasion heads and electronic digital counter to control the number of cycles.

Test Standards: ASTM D4157

Product Features

1. The arc friction table is made of high quality SUS304 stainless steel, and the surface is flat and durable.

2. Dust removal ventilation system is directly connected to the air outlet of the instrument. The suction port is opposite to the surface of the sample. During the test, the worn dust can be removed in time without affecting the test results.

3. High resolution touch screen directly display set parameters, results, response fast.

4. Each working station can be controlled separately.

5.The machine is equipped with emergency stop switch.

6.Fast install specimen on test table, very convenient.
