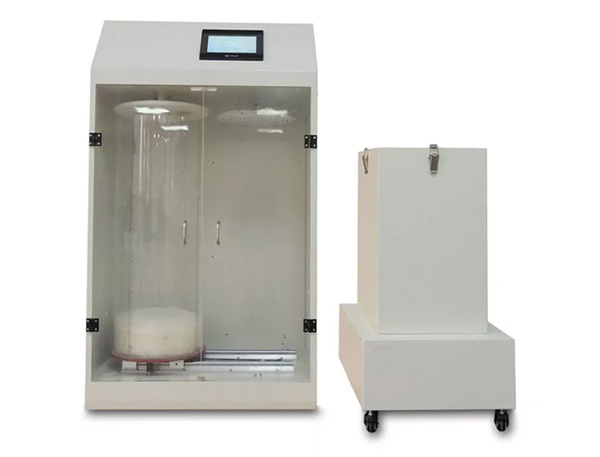

XHinstruments XHF-49C Feather & Down Filling Power Tester

Measurement accuracy: 0.1mm

Measuring height: 605mm

Measurement speed: 1-600mm/min adjustable

Cylinder diameter: 288 mm ( BS EN12130) (Standard); 240mm (Opational)

Weight Plate Mass: 94.25g diameter 284mm ( BS EN12130) (Standard); 68.4g diameter 240mm (Optional)

Weight of Specimen: (0.1-99.9)g can be set

Plate: 128 Holes, Diameter 3mm

Blowing down time: 1-999s can be set

Pressure down time: 1-999s can be set

Testing Unit: cm³,in³, mm, L/kg, cm³/g

Power: AC 220V±10% 50Hz 150W

Dimensions: 730×600×1230mm

Weight: 125Kg

Product Description: XHF-49C Feather & Down Filling Power Tester is used to measure the fluffy degree of down ,feather products and filling materials

Test Standards: GB/T 14272-2021, GB/T 10288-2016, IDFB Part 10-B, BSEN12130

Product Features:

Color touch-screen display, man-machine dialogue, easy to operate.

The unique filter ventilation design,Blowing wool and wool location automatically switches, feathers will not be flying about, prevent harmful to operators.

The machine test speed can be set, suitable for different standards, the transmission structure adopt stepper motor system, make high accuracy of volume accurate.

Sensor with high precision, ARM32 bit microprocessors, 16 bit A/D acquisition precise induction pressure plate location,accurately calculate the test results, can be used multiple standards.

Automatic wind speed design system, ensure the fleeciness nature of the feather hair, make the measured data of each time has better veracity and repeatability.

Built in Printer for print test results.
