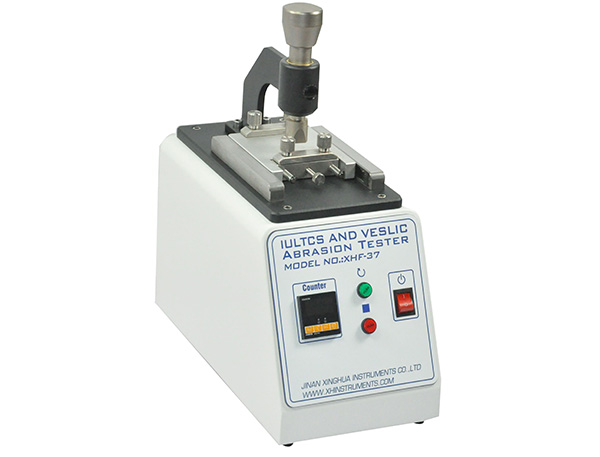

XHinstruments XHF-37 ເຄື່ອງທົດສອບ Iultcs ແລະ Veslic Abrasion Tester

Sample Size: 120mm×20mm

Area of testing head: 15mm×15mm

Movement speed: (40 ± 2) times / min.

Load Piece: 500g±10g

Total weight for weights+ finger: 1000g±35g

Rubbing Track: 35-40mm

Specimen Stretch: Max 20%

Counter: LED 0-9999, Auto Stop

Clamp space: Min 80mm

Dimension: 220×410×450mm

Weight: 28kg

Power Supply: AC 110V/220V ,50/60Hz

Product Description: XHF-37 Iultcs and Veslic Abrasion Tester: doing test should be in required pressure, and go to reciprocating abrasion to the surfaces of dyeing leather with prescriptive felt, test required times. There are dry and wet two type of test.

Test Standards:  ISO-11640, SATRA TM173, IUF 450, DIN 4843, EN ISO 20344 (7.3)
