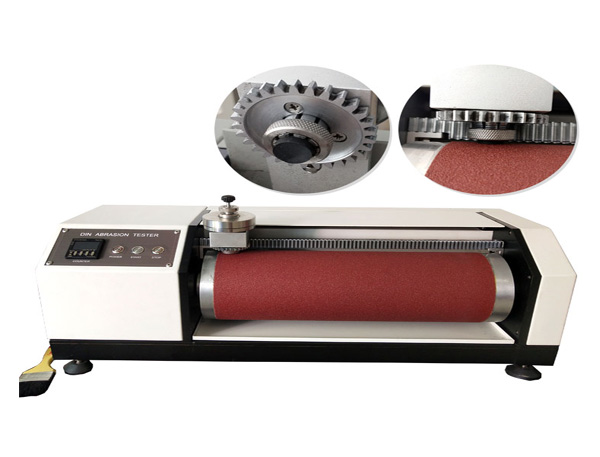

XHinstruments XHF-33 ເຄື່ອງທົດສອບການຂັດຂັດ DIN

Specimens size: Φ16±0.2mm, 6-14mm (thickness)

Load: 2.5N, 5N, 10N

Fixture lateral displacement: 4.2mm/wheel each lap

Wear Wheel diameter: 150mm±0.2

Roller length: 460mm

wheel rotate speed: 40±1r/min

Wear Stroke: 40m

Test method: Rotation/No Rotation

Dip angle: 3° the angle of the specimen back shaft with vertical roller face

Sand Paper: VSM-KK511X-P60

Dimension: 800mm ×400mm ×350mm

Weight: 61Kgs

Power Supply: AC 220±10%, 50Hz/ 60Hz

Product Description:

The DIN Abrasion Tester is suitable to determine the wear resistance of elastic material, rubber, tires, conveyor belts, shoe soles, soft synthetic leather and other materials.

Principles:

Under a predetermined contact pressure and a given area ,the specimen with sandpaper angled to measure abrasion resistance of the specimen subjected to rubbing on a certain level of sandpaper, sandpaper affixed to the surface of the drum, samples pressed on a drum with sandpaper, and the specimen along the roller to the lateral movement, abrasion resistance is produced at one end of the cylindrical specimen, tests the value of the mass loss of the specimen, by the density of the specimen to calculate the amount of volume abrasion.

Test Standards: BS-903 DIN53516 ISO-4649 GB/T 9867 SATRA TM174 JIS-K6264, EN12770, ISO 20871

Product Features

Refined standard rolling, dual-axis fixed, smooth rotation without jumping

The machine body is painted electrostatically, which is beautiful and durable

Precision drive motor, stable operation and low noise

High-precision ball screw control movement speed

Imported high-precision bearings, low friction and high precision

Both non-rotating and rotating tests can be used in common

Metal LED keys, durable and beautiful

Power-off memory digital display counter
