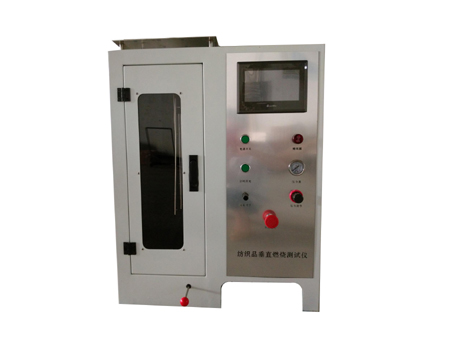

XHinstruments XHF-19I ເຄື່ອງທົດສອບຄວາມຕ້ານທານຂອງໄຟ

Test clip size: 16.63inch x 3.0inch, sample exposure size: 14inch x 2inch

Igniter timing: 0 to 999.9 seconds arbitrary setting

Timer: 0-999.9s, precision: 0.1s

Flame height measurement device: height 19mm, 38mm

Gas:99% propane gas; customer prepared

Power Supply :AC220V，50Hz，50W

Weight:20 kg

Product Description:

ASTM F1358 Flame Resistance Tester is designed in accordance with ASTM F1358-2016 to test the vertical fire resistance of textiles.

Test Standards: ASTM F1358-2016

Product Features:

The box is painted with a transparent observation window; and the top is equipped with a steady air cover.

Combustion box inner dimension: long 330mm x wide 330mm x high 762mm.

Electronic automatic ignition; ignition time can be set;

Ignition time 0-99.9 seconds arbitrary setting.Automatic recording of continuous ignition time and flame retardant time.

The height of the flame can be adjusted.

"Push and pull" fixing device

The burner is fixed on a sliding track, convenient to operate, and when it is pushed to the burning position, the timing of the burner is automatically timed.

The imported needle valve controls the gas flow accurately and adjusts the height of the flame

A variety of sample holders are available for selection according to the different test samples

Imported pressure gauge and pressure regulating valve to regulate gas pressure

Imported Bunsen Burner, inner diameter of lamp tube 10mm

Equipped with a flame tongue which height is 19mm, 38mm
