XHinstruments XHF-19H ຕິດຕໍ່ເຄື່ອງທົດສອບຄວາມຮ້ອນຂອງສາຍສົ່ງ

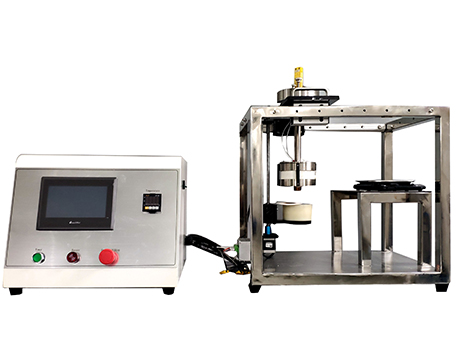

The equipment is made up of a controller and a testing panel.

The sample holder automatically lifts up and down, the speed is 5mm + 0.2mm/s.

K type thermocouple with a diameter of 2mm and a temperature measurement of 0.1 C

The heating barrel is made of high temperature resistant metal material, the temperature is more than 500℃, the contact surface diameter of the sample is 25.2 ± 0.05mm.

Heating body temperature range: from room temperature to 500 C, real-time display, heating body platform can be left and right parallel movement.

The load weight of the heating barrel is 49N.The weight is adjustable.

The calorimeter rise and fall automatically at a constant speed.

The support frame material is nylon 66; the diameter is 40mm and height is 50mm

Sample diameter: 80mm

PLC and touch screen control system

The system automatically collection temperature data . (Including the starting temperature, the critical time, the critical time termination temperature and the real time temperature)

The test data is calculated and stored automatically; it can be printed freely.

Machine Dimension::650mm x 350 mm x 650mm

Power: AC 220V 50/60Hz, 800W

Product Description:

Contact Transmission Heating Tester is designed in accordance with ISO12127-2007 and EN702.The tester is used to determinate the heat transfer performance of the sample at a certain temperature and widely used in fire protection clothing related companies and testing departments.

Test Standards: ISO12127-2007 , EN702
