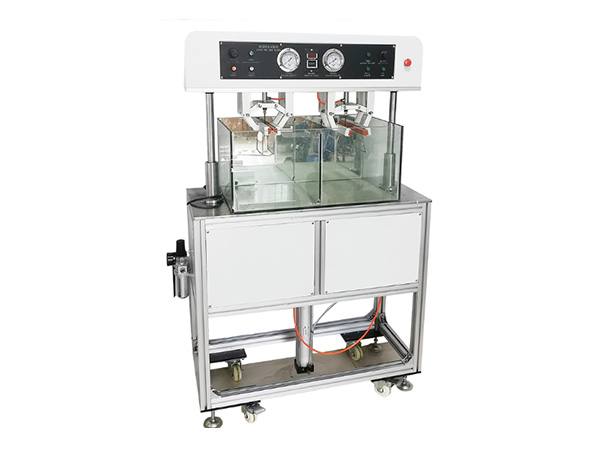

XHinstruments XHF-146 ເຄື່ອງກວດພິສູດການຮົ່ວໄຫຼ

Feed air pressure range: 0.0-50kpa

Test accuracy: 0.1Kpa

Test Pieces: 2 Pcs at same time

Counter: LED, 0-999s adjustable

Control mode: Key/Foot switch

Dimension: 930mmx500mmx1500mm

Weight: 130Kgs

Power Supply: AC 220V 50/60HZ

Product Description:

The footwear leak proofness tester  is used for determination of leakproofness.

Principle:

Seal the top edge of the test piece, e.g. with a rubber collar through which compressed air maybe fed via appropriate connections. Immerse the test piece in a water bath up to the edge and apply a constant internal pressure of 30±5Kpa. Oberve the test piece throughout the test and determine whether there is continued formation of air bubbles, indicating leakage of air.

Test Standards: EN ISO 20344:5.7

Product Features:

Mechanical parts are composed of non-corrosive structural aluminum and stainless steel materials.

Industrial timer, high precision, clear digital display;

Equipped with industrial grade double shockproof pressure gauge, high precision.

Double stations, independently control the fixture.

Dual control, button test, foot control, easy to operate.

All copper air blowing nozzle, double anti-swing ring design when entering the water to prevent water out.

Thickened explosion-proof transparent glass tank, easy to observe the product condition.
