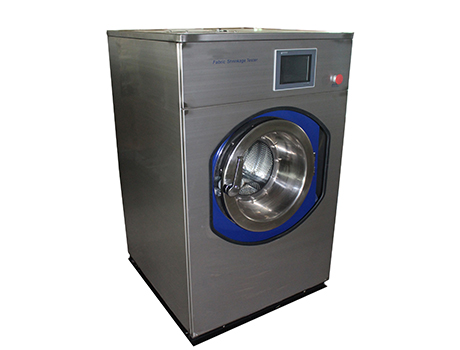

XHinstruments XHF-12 ເຄື່ອງທົດສອບການຫົດຕົວຂອງຜ້າອັດຕະໂນມັດ

Category: Horizontal roller type, front door feeding mode

Inner layer roller: Diameter : 520+/-1mm; Depth: 315+/-1mm

Inner and outer roller gap: 2.8cm±0.1cm

Lift vane quantity: 3 PCS 120° even distribution

Lift vane height: 53mm+/-1mm

Rotation action:

Normal On: (12+/-0.1)S, Normal Off (3+/-0.1)S

Mild On: (8+/-0.1)S, Mild Off (7+/-0.1)S

Gentle On: (3+/-0.1)S, Gentle Off (12+/-0.1)S

Soft: clockwise rotation (3+/-0.1)S, stop (12+/-0.1)S

Anticlockwise rotation (3+/-0.1)S, stop (12+/-0.1)S

Rotation Speed:

Wash: (52+/-1) rpm

Low Spin: (500+/-20) rpm

High Spin: (800+/-20) rpm

Water level control: Low level: 10cm, High level: 13cm

Fill water time: < 2min (water in high level 13cm)

Drainage duration: < 1min (water in high level 13cm)

Setting range to water temperature: Room temperature to 99°C (accuracy: +/-1°C)

Heating power: 5.4kw

Washing capacity: 5kg

External Dimensions: 850mm×750mm×1200mm

Weight: 200Kg

Power source: 220V, 50Hz, Three Phrase
