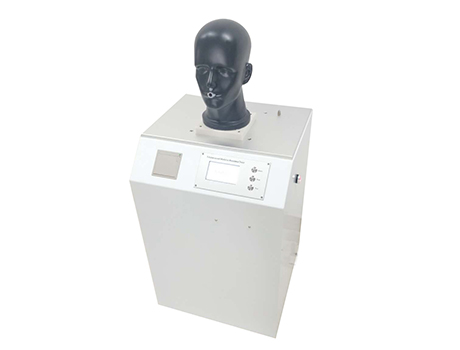

XHinstruments XHF-113A Mask Exhalation ແລະ Inhalation Resistance Tester

Digital Differential Gauge Range: -1000-1000Pa Accuracy: 1Pa

Inspiratory Speed: 30-160L/min Accuracy: 1%

Exhale Speed: 30-160L/min Accuracy: 1%

Units: Pa, mbar

Test Time: Full automatic test 10~20s

Printer: Micro thermal printing

Dimensions: 510×450×1110mm

Weight: About 63kg

Power: AC220V, 50Hz, 650W

Display: Touch screen in English display

Product Description:

Mask Breath Respiratory Resistance Tester is designed to test the exhalation and inhalation resistance of various types of masks. It used for testing of common mask products by manufacturers of national labor protection equipment inspection institutions. It adopts the latest technology, automatic tests. There is no need to connect external air source, and no need to adjust the instrument manually during the test. The internal sensor of the instrument is the high-precision digital sensor of SMI company (precision 1%), which guarantees the accuracy of the test results.

Test Standards:  BS EN149, GB 2626, GB/T 32610-2016, GB 19083-2010, GB 19082-2009,  YY0469-2011, YY/T 0969-2013, Noish 42 CFR 84

Product Features

1. Fully automated testing. It takes only 10 to 20 seconds to measure both expiratory resistance and inspiratory resistance.

2. Use the USA company SMI’s high precision digital sensor (precision 1%) to ensure the measurement accuracy.

3. High precision air flow control module, fully automatic adjustment. Ensure the accuracy of exhalation speed and extraction speed(accuracy 1%).

4. Color touch screen control, Chinese and English menu, easy to operate.

5. Micro thermal printer, easy to print test results quickly.

6. The standard human head model can simulate the real inhalation and exhalation of human body to improve the accuracy of data.
