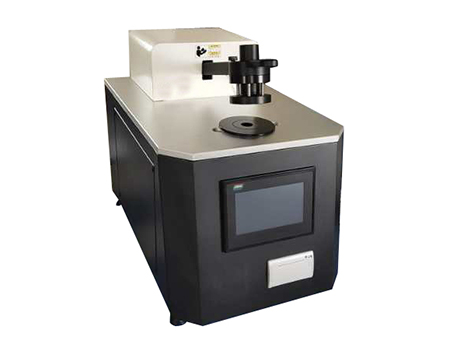

XHinstruments XHF-111 ເຄື່ອງທົດສອບຄວາມດັນຕ່າງໜ້າກາກ

Flow Range: 0.5-25L/min (adjustable), standard:(8+/-0.2)L/min

Digital Pressure Difference Measuring Range: 0-500Pa±1%, Resolution:: 0.1 Pa

Test Area: 4.9cm²

Test Diameter: 25mm

Printer: Thermal Printer

Dimension: 660×420×520mm

Power Supply: AC 110V/220V±10% 50/60Hz

Product Description:

Medical face mask differential pressure tester also called mask breathility tester is to determine the breathability of medical face mask materials. The tester can measure the differential pressure (Delta P) required to draw air through a measured surface area at a constant air flow rate is used to measure the air exchange pressure of the medical face mask materials. By providing the suction air through the holding sample, the tester can measure the Delta P by differential pressure transducer. It is to determine the air permeability and using comfort of the materials for medical mask.

Test Standards:  EN 14683, Annex C, ASTM F2100, MIL-M-36954C

Product Features

Built in air compressor, no need to connect air source.

Real time display air flow

5 Inch High resolution color touch screen operation.

Adopt accurate and sensitive digital differential pressure sensor.

Adopt Japan SMC digital flow meter, control air flow accurately,

Easy to install specimen by special design of clamp.

Built in micro printer for printing test result

Unit H2O/cm2 and Kpa/cm2 is for selection
