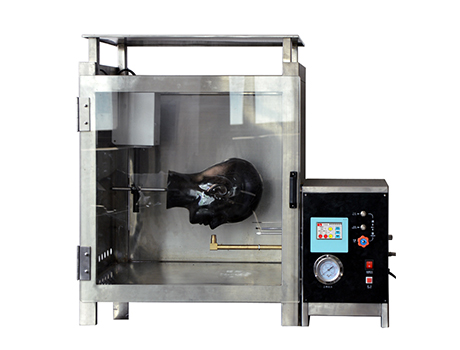

XHinstruments XHF-108 Mask Flame Retardant Tester

Timing Range: 1s-999.9s

Timing Accuracy: 0.1s

Head Mold: Full Metal

Head Mold Linaer Speed: 50mm/s-70mm/s (settable)

Speed Accuracy: +/-1mm

Flame Height: (40+/-4)mm (adjustable)

The temperature of the flame: (800 +/-50) C at a height of (20 +/-2) mm from the top of the burner.

Distance between top of burner to Mask: (0-130)mm+/-1mm (adjustable)

Dimension: 950mm×670mm×860mm

Power Supply: AC 220V. 50Hz

Weight: 55Kgs

Product Description:

Mask Flame Retardant Tester is used for flame retardant performance of medical masks, to test the flammability performance of medical mask after contacting with flame at a certain linear speed.

Test Standards: EN 136, EN 149

Product Features:

1 Single-chip computer system, color touch screen control, convenient and reliable test.. It can be used by medical inspection departments, safety inspection departments, colleges and universities, and scientific research units.

2.2 The ergonomic all-metal human head mold sample placement point can simulate the actual use of various masks and respirators.

2.3 Large fire when detect, small fire when wait, avoid wasting gas resources and reduce safety risks.

2.4 The burner flame height is adjustable. The burner flame height can be automatically switched between test and non-test,reach a stable flame height.

2.5 Burner automatic has timing and positioning function.
