XHinstruments XHF-105A ເຄື່ອງທົດສອບຄວາມຕ້ານທານຄວາມຮ້ອນ (0.002-2.0 m²K / W)

(RCT)Thermal resistance range: 0.002-2 .0 m²K / W

Repeatability: ≤ +/- 2%

Resolution: 0.001m²K / W

Test plate temperature range: 20 C -50C adjustable

Temperature control accuracy: +/- 0.1 C

Temperature Resolution: +/-0.03C

Testing time set range: 10s-86400s（24h)

Preheat time set range: 10s-86400s（24h)

Steady time set range: 10s-86400s（24h)

Air velocity: 0 - 1.0 m / s continuously adjustable

Air velocity control accuracy: +/-1%

The sample platform lift range: 0-70mm Manual lift

Sample thickness: 0-70mm

Test plate area: 250mm × 250mm

Test table area: 500mm×500mm×120mm

Power: 110V/220V, 50Hz/60Hz

Product Description

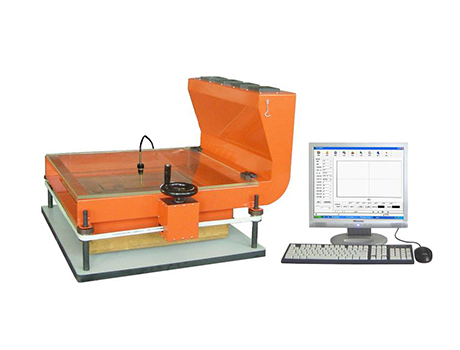

Fabric Thermal Resistance Tester, to determine the thermal resistance ( m²K / W), thermal conductivity (W/(m.K), Clo Value (m²K / W), Heat Transfer Coefficient (W/(m²K)) of various fabrics, quilting products, and other heat insulation materials.

Principle:

Clothing is often made of materials that impede the flow of heat from the skin to the environment. Consequently, people may suffer from heat stress or cold stress when wearing clothing in different environmental conditions. Therefore, it is important to quantify the thermal resistance of clothing materials and to consider these properties, when selecting materials for different clothing applications

Application:

 Measurement of the thermal resistance under Steady-state, conditions, of fabrics,coatings, foams, and leathers,including multi-layer assemblies, for use in clothing systems.

Test Standards: ISO 11092, ASTM D 1518
