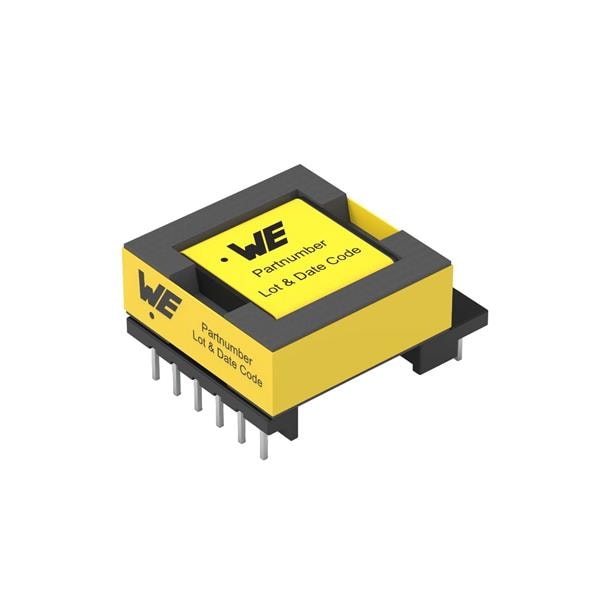

Wurth Elektronik 750811645 Flyback MID-OLEFD 125-375V 68-100kHz

Width: 33 mm

Height: 14 mm

Length: 26.3 mm

Inductance: 470 uH

Turns Ratio: 16.66:4:4:2.33:1

Unit Weight: 22.799 g

Power Rating: 34.1 W

Mounting Style: Through Hole

Primary Winding: Dual Primary Winding

Secondary Winding: Dual Secondary Winding

Termination Style: Through Hole

Operating Frequency: 68 kHz to 100 kHz

Primary Voltage Rating: 85 VAC to 265 VAC

Secondary Current Rating: 710 mA, 710 mA

Secondary Voltage Rating: 24 V, 24 V

Operating Temperature Range: - 40 C to + 125 C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
