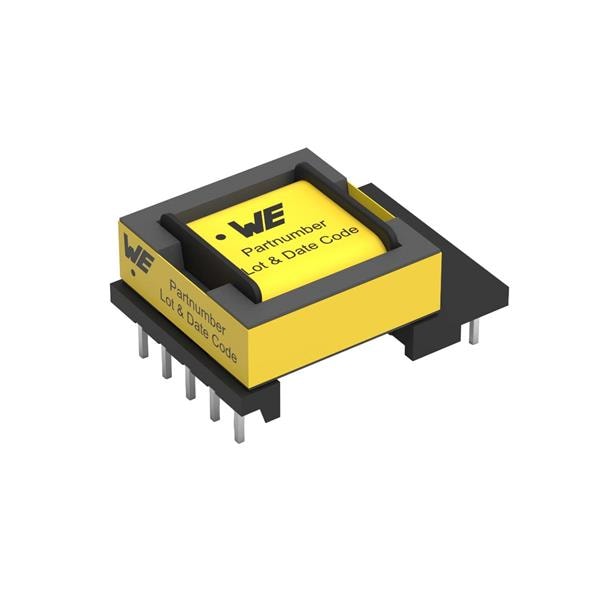

Wurth Elektronik 750811613 Offline Flyback MID-OLEFD EFD20 TH .8uH 1.4A 12V

Width: 29 mm

Height: 12 mm

Length: 21.5 mm

Inductance: 800 uH

Turns Ratio: 6.66:0.6:0.6:1

Unit Weight: 12.789 g

Power Rating: 19.8 W

Mounting Style: Through Hole

Primary Winding: Dual Primary Winding

Secondary Winding: Dual Secondary Winding

Termination Style: Through Hole

Operating Frequency: 68 kHz to 160 kHz

Primary Voltage Rating: 85 VAC to 265 VAC

Secondary Current Rating: 1.8 A, 900 mA

Secondary Voltage Rating: 5 V, 12 V

Operating Temperature Range: - 40 C to + 125 C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
