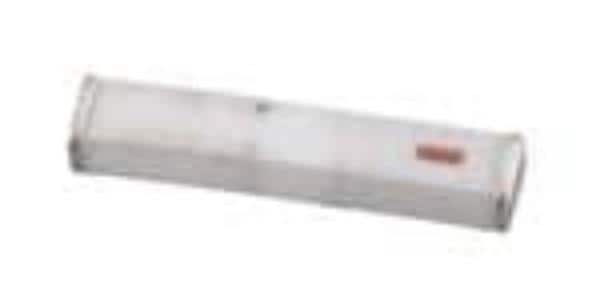

Wurth Elektronik 7488910915 ແນວຮັບສະສົມສະຕິກ WE-MCA Multilyr Chip 902-928MHz 50ohm

Gain: 0.5 dBi

VSWR: 3

Style: Multilayer

Width: 3.7 mm

Height: 0.7 mm

Length: 5.2 mm

Impedance: 50 Ohms

Application: IoT Application

Mounting Style: PCB Mount

Number of Bands: 1 Band

Center Frequency: 915 MHz

Mechanical Style: Chip

Maximum Frequency: 908 MHz

Minimum Frequency: 928 MHz

Termination Style: SMD/SMT

Protocol - Sub GHz: ISM, RFID

Protocol - WiFi - 802.11: LoRaWAN, SigFox

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
