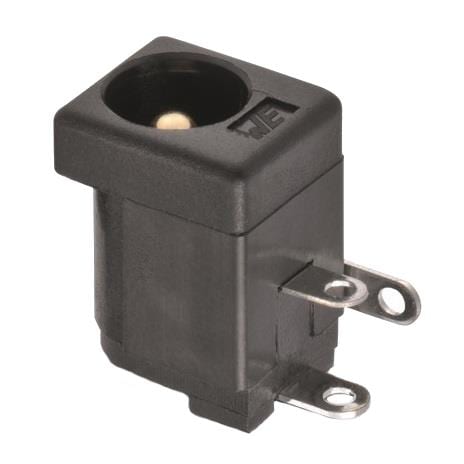

Wurth Elektronik 694103303002 Jacks WR-DC PwrJk CtrPnTHT ມຸມຂວາ

Color: Black

Unit Weight: 600 mg

Connector Type: DC Power Jack

Contact Gender: Female

Current Rating: 2 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Voltage Rating: 30 VDC

Contact Plating: Tin

Contact Material: Copper Alloy

Housing Material: Polyamide (PA)

Center Pin Length: 5.7 mm

Termination Style: Solder

Flammability Rating: UL 94 V-0

Insulation Resistance: 100 MOhms

Inside Contact Diameter: 1.3 mm

Outside Contact Diameter: 4.2 mm

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
