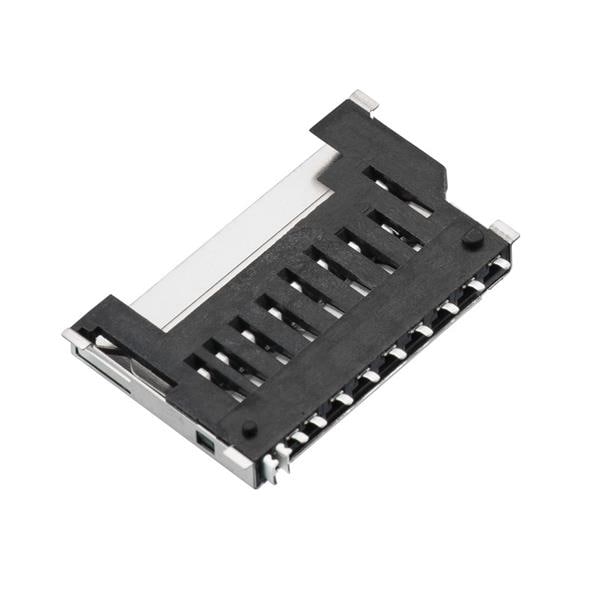

Wurth Elektronik 693063020911 WR-CRD ບັດ SD ການກວດຈົດ 9Pin ການກົດສັ້ນແລະດຶງ

Pitch: 1.7 mm

Height: 2.8 mm

Length: 26.1 mm

Features: With card detection

Card Type: SD

Orientation: Right Angle

Unit Weight: 1.320 g

Mating Cycles: 10000

Current Rating: 500 mA

Mounting Style: PCB Mount

Number of Rows: 1 Row

Voltage Rating: 100 VAC

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Polyamide (PA)

Termination Style: SMD/SMT

Number of Contacts: 9 Contact

Flammability Rating: UL 94 V-0

Insulation Resistance: 1 GOhms

Insertion - Extraction Style: Push-Pull

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
