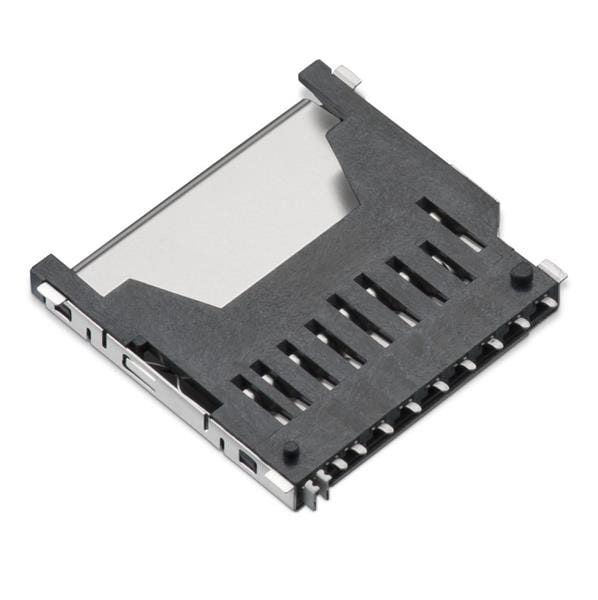

Wurth Elektronik 693063010911 ກາດຄອນເນັກເຊັກເຕີ WR-CRD ກາດ SD ການກວດສອບ 9Pin ກົດແລະດຶງ

Pitch: 2.42 mm

Height: 2.6 mm

Length: 25 mm

Features: With card detection

Card Type: SD

Orientation: Right Angle

Unit Weight: 1.810 g

Mating Cycles: 10000

Current Rating: 500 mA

Mounting Style: PCB Mount

Number of Rows: 1 Row

Voltage Rating: 100 VAC

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: SMD/SMT

Number of Contacts: 9 Contact

Flammability Rating: UL 94 V-0

Insulation Resistance: 1 GOhms

Insertion - Extraction Style: Push-Pull

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
