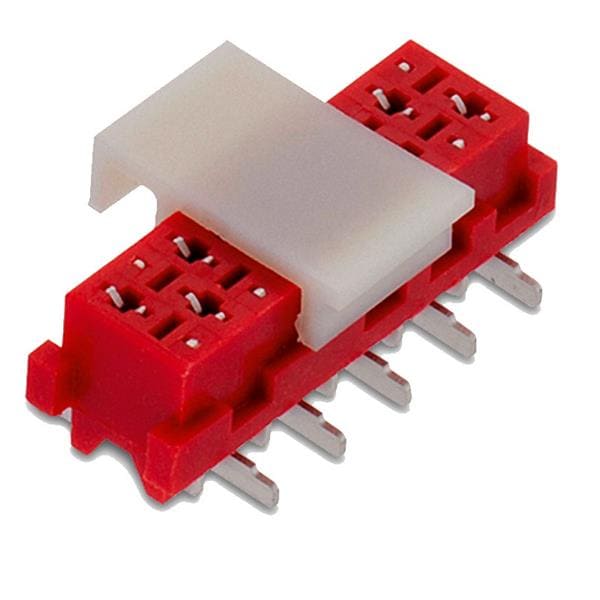

Wurth Elektronik 690367282676 ສາຍສະເພາະ Ribbon Cable WR-MM FMLCONN 26P SMT w/Plztn

Pitch: 2.54 mm (0.1 in)

Application: Wire-to-Board

Row Spacing: 1.5 mm (0.059 in)

Unit Weight: 1.640 g

Housing Color: Red

Contact Gender: Socket (Female)

Current Rating: 1.5 A

Mounting Angle: Straight

Mounting Style: SMD/SMT

Number of Rows: 2 Row

Contact Plating: Tin

Contact Material: Phosphor Bronze

Housing Material: Polyamide (PA)

Termination Style: Solder

Flammability Rating: UL 94 V-0

Number of Positions: 26 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
