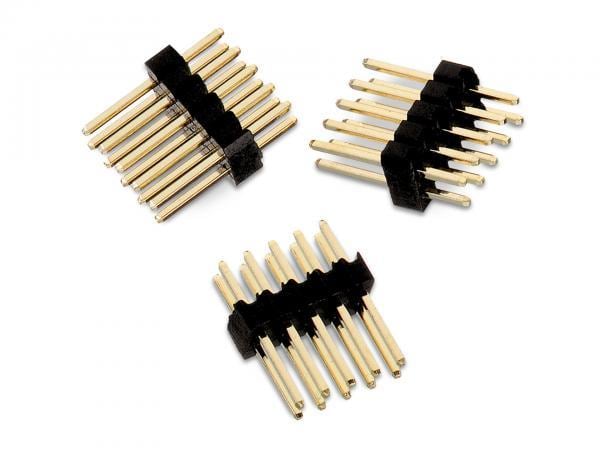

Wurth Elektronik 62202821121 ພິນສະຕຣິບ WR-PHD 2.54mm Hdr 28 P Dual Str Gold

Pitch: 1.27 mm (0.05 in)

Application: Wire-to-Board

Row Spacing: 1.27 mm (0.05 in)

Unit Weight: 391.300 mg

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 1 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 50 V

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Polyamide (PA)

Termination Style: Solder Pin

Mating Post Length: 3.8 mm (0.15 in)

Flammability Rating: UL 94 V-0

Number of Positions: 28 Position

Insulation Resistance: 1 GOhms

Termination Post Length: 2.3 mm (0.091 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
