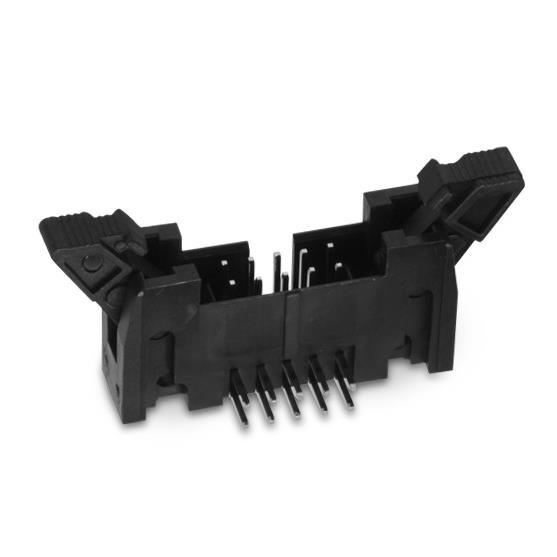

Wurth Elektronik 61204022121 Shrouded WR-BHD 2.54mm Male 40P Angld Box w/Lvr

Pitch: 2.54 mm (0.1 in)

Application: Wire-to-Board

Row Spacing: 2.54 mm (0.1 in)

Unit Weight: 8.744 g

Housing Color: Black

Latching Type: Eject Latch

Contact Gender: Pin (Male)

Current Rating: 3 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 250 V

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Polybutylene Terephthalate (PBT)

Termination Style: Solder Pin

Flammability Rating: UL 94 V-0

Number of Positions: 40 Position

Insulation Resistance: 1 GOhms

Termination Post Length: 3.4 mm (0.134 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
